有源芯片计时系统-主动式
该系统能够为特定项目实现计时(记圈)任务,系统包括简易的连接方案和芯片数据自动记录的软硬件配置。符合实际测试(比赛)现场的场地、气候等客观条件;灵活的软件能够有效地完成数据采集和处理(分组排序、导出、打印),包括圈数统计与展示,同时该系统能够与现有赛事编排系统、媒体展示系统等进行连接。
一、 系统构成

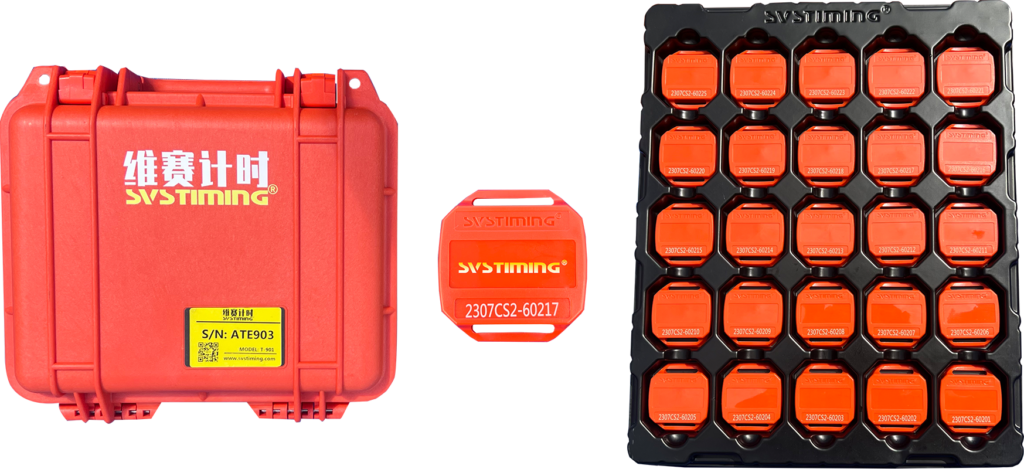

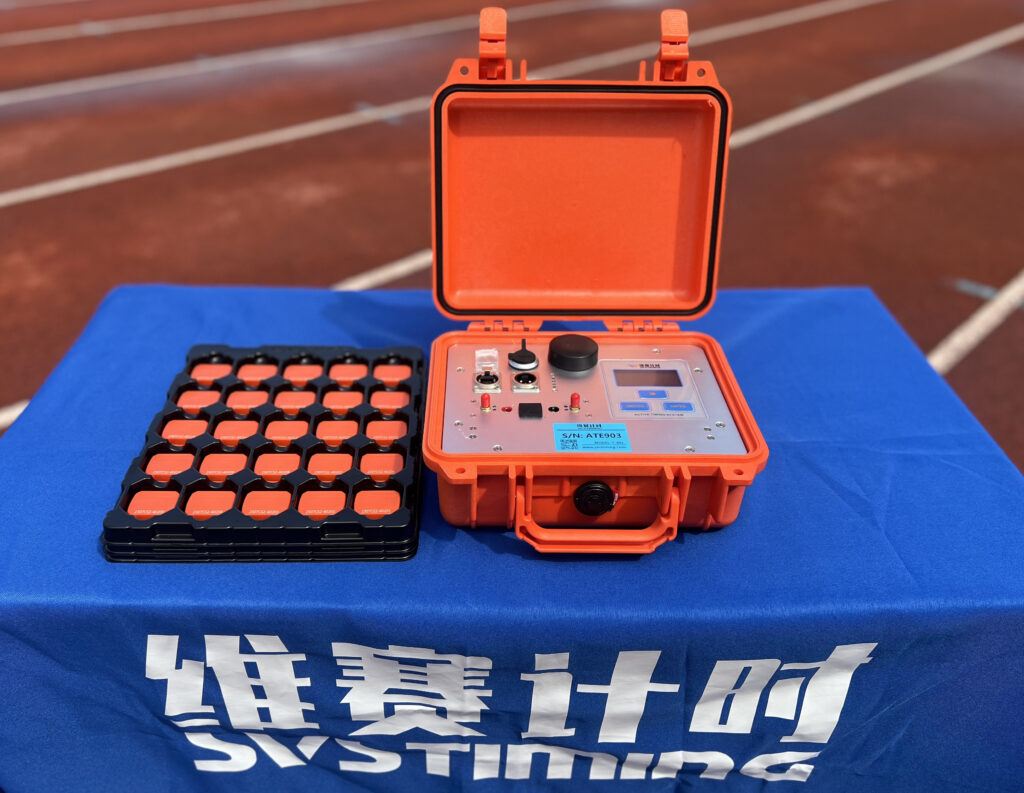

系统主要包括:计时主机、计时芯片、激活线、接收天线、多功能计时软件和必要的连接线
二、适用项目
田径中长跑、自行车、轮滑、卡丁车、摩托车、赛车、铁人三项等 。
三、性能指标
主机
- 阅读速率:>200个/s(标准阅读状态下)
- 阅读率:>99.99%(标准阅读状态下)
- 计时精度:3/100s(35公里匀速标准阅读状态下)
- 供电电压:AC220V或DC24V
- 供电时长:内部锂电池不间断供电>10h
- 数据端口:1、网口连接(TCP/IP协议);2、无线物联网连接
- 产品重量:2.9kg
- 产品体积:27×25×12cm
- 工作温度:-20℃至60℃
- 读取距离:>80m
芯片
- 运动速度:<180km/h
- 产品体积:4×3.8×0.85cm
- 产品重量:17.5g
System Introduction
This system can accompany the task of timing and circle-counting for particular sport events in various field and weather condition. With the smart and efficient software collecting and handling transponder data, it can output the results, provide auto lap-counting, and link with the event scheduling and media presentation system.
System Components
timing mainframe,transponder,antenna, activator, multi-functional software, connecting line
Applied Item
Athletics:3000m,5000m;Cross-country Race; Marathon; Bicycle; Triathlon; kart; Motor race; Military Daily Training; School and University Daily Training and Sports Meeting
Index
Timing mainframe
Transponder scanning: at least 200 per/ sec
Accuracy: 0.001s
External power: AC 220V or DC 5V
Internal lithium battery: at least 10 hours
Data port: 1、internet access(TCP/IP) ;2、loT card
Weight: 5kg Size:27×25×12cm
Working degree: -20℃-60℃
Transponder
Detecting distance: at least 80m
Working speed: up to 200 km/h
Size:4.1×3.8×0.85cm
Weigh: 17.5g
